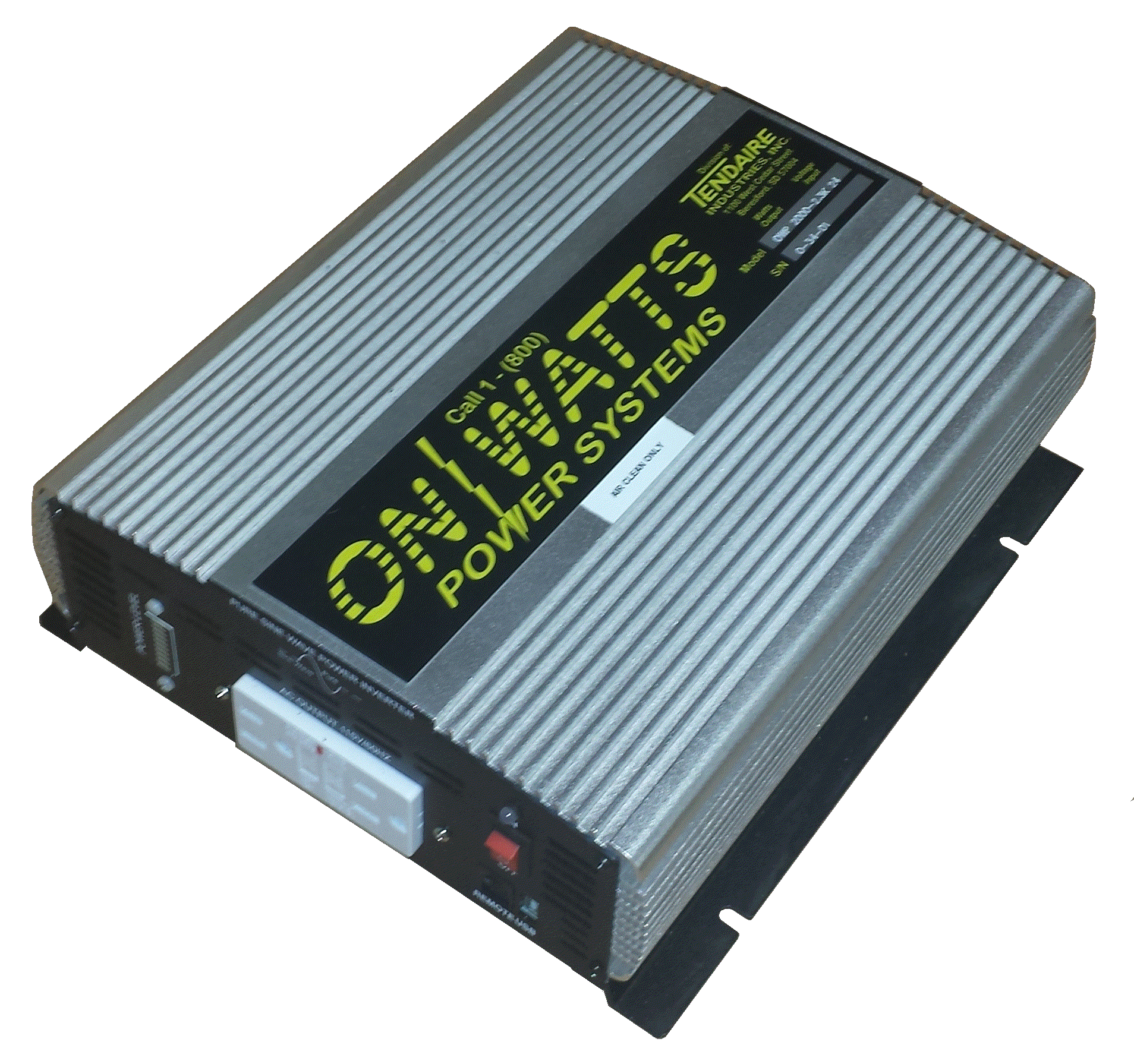

PURE SINE WAVE
ON WATTS POWER INVERTER


Some examples of devices and appliances requiring a pure sine inverter are:

  • Sensitive electronics

  • CPAP machines with humidifiers

  • Medical equipment

  • Microwaves

  • Variable speed tools

  • Cordless tool battery chargers

  • Some TV’s

2000 Watt Continuous

24 Volt DC Input

Pure Sine Wave Inverter

Introduction: The Product inverts 24V DC to 115V AC meeting the 120V AC electronic safety operating standard. It can be used to power most electronic appliances or equipment.

​

Appearance: Aluminum Housing

​

Electronic Performance: The inverter provides high efficiency output and powerful starting capability and digital control.

Display:

  Output Power Indicator

8 Green LED steps - Indicate 0 Watts up to 1800 Watts

1 Orange LED step - Indicate 1200 Watts up to 1800 Watts

1 Red LED indicates the ouput load is more than 1800 Watts

Specifications

Pure Sine Wave Output AC Wave Form
2000W contiuous MAX AC Power Output
115VAC± 10% RMS Output Voltage
60 ± 1Hz Output AC Frequency

≤1.5 Amp DC Input Static Current (No Load)

180-240 Amp DC Input over load Current

High Voltage Cut Off Level of 30-33 Volt
DC Input Voltage Alarm @ 21V ± 1V
Low DC Input Voltage Cut Off @ 20V ± 1V

Auto Reset After shut-down @ 24V ± 1V
Overload Power Range @ 2000W +5% to +30%

USB Output Voltage of 4.7 to 5.3VDC / 2100mA
AC Output Short Circuit Protection= System shut down

Temperature Protection of <149º F

>80% Full Load Optimum Efficiency

32º to 104º F Operating temperature
Internal Fan runs when internal temp.  ≥ 113ºF
Operating Humidity of 10-90% RH

25 Amp Fuse (Spade Type- 6 pcs)

LED Indication - Normal: Green  -  Fault: Red

Dimensions are L 12-1/4” x W 9-3/4” x H 3-5/8”
Weight of 8 Lbs. 6 Oz.

2000 Watt Continuous

12 Volt DC Input

Pure Sine Wave Inverter

Introduction: The Product inverts 12V DC to 115V AC meeting the 120V AC electronic safety operating standard. It can be used to power most electronic appliances or equipment.

​

Appearance: Aluminum Housing

​

Electronic Performance: The inverter provides high efficiency output and powerful starting capability and digital control.

Display:

  Output Power Indicator

8 Green LED steps - Indicates 0 Watts up to 1800 Watts

1 Orange LED step - Indicates 1200 Watts up to 1800 Watts

1 Red LED indicates the output load is more than 1800 Watts

Specifications

Pure Sine Wave Output AC Wave Form
2000W contiuous MAX Output AC Power
115VAC± 10% RMS Output Voltage
60 ± 1Hz Output AC Frequency

≤1.0 Amp DC Input Static Current (No Load)

180-240 Amp DC Input over load Current

High Voltage Cut Off Level of 15-16.5 Volt
DC Input Voltage Alarm @ 10V-11V
Low DC Input Voltage Cut Off @ 9.5V-10.5V

Auto Reset After shut-down @12V ± 1V
Overload Power Range @ 2000W +5% to +30%

USB Output Voltage of 4.7 to 5.3VDC / 2100mA
AC Output Short Circuit Protection= System shut down

Temperature Protection of <149º F

>80% Full Load Optimum Efficiency

32º to 104º F Operating temperature
Internal Fan runs when internal temp.  ≥ 113ºF
Operating Humidity of 10-90% RH

25 Amp Fuse (Spade Type- 6 pcs)

LED Indication - Normal: Green  -  Fault: Red

Dimensions are L 12-1/4” x W 9-3/4” x H 3-5/8”
Weight of 8 Lbs. 6 Oz.
